CQ160 vs CQ450
The same range, two very different units. Here is what separates them.

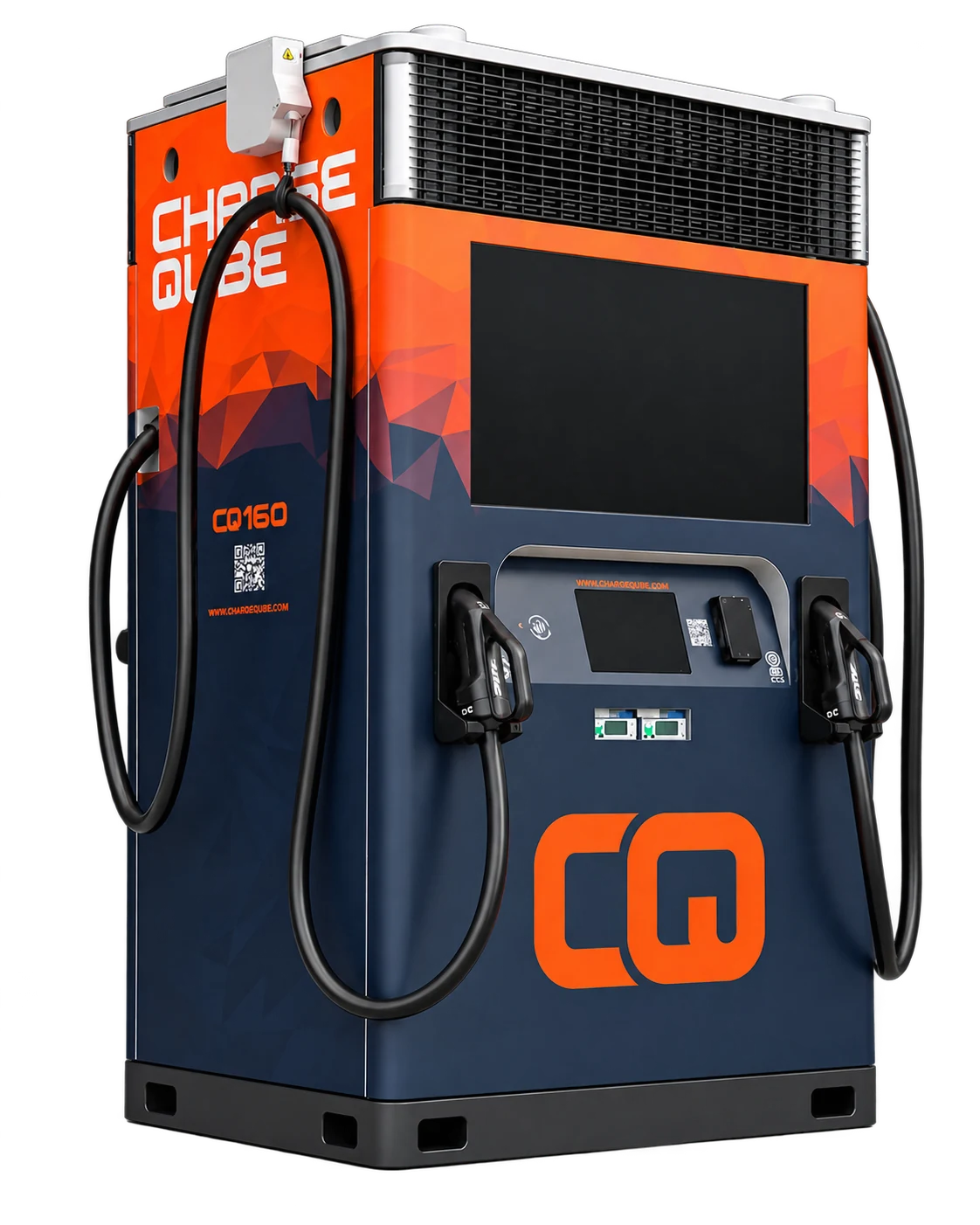

CQ160
Compact pillar

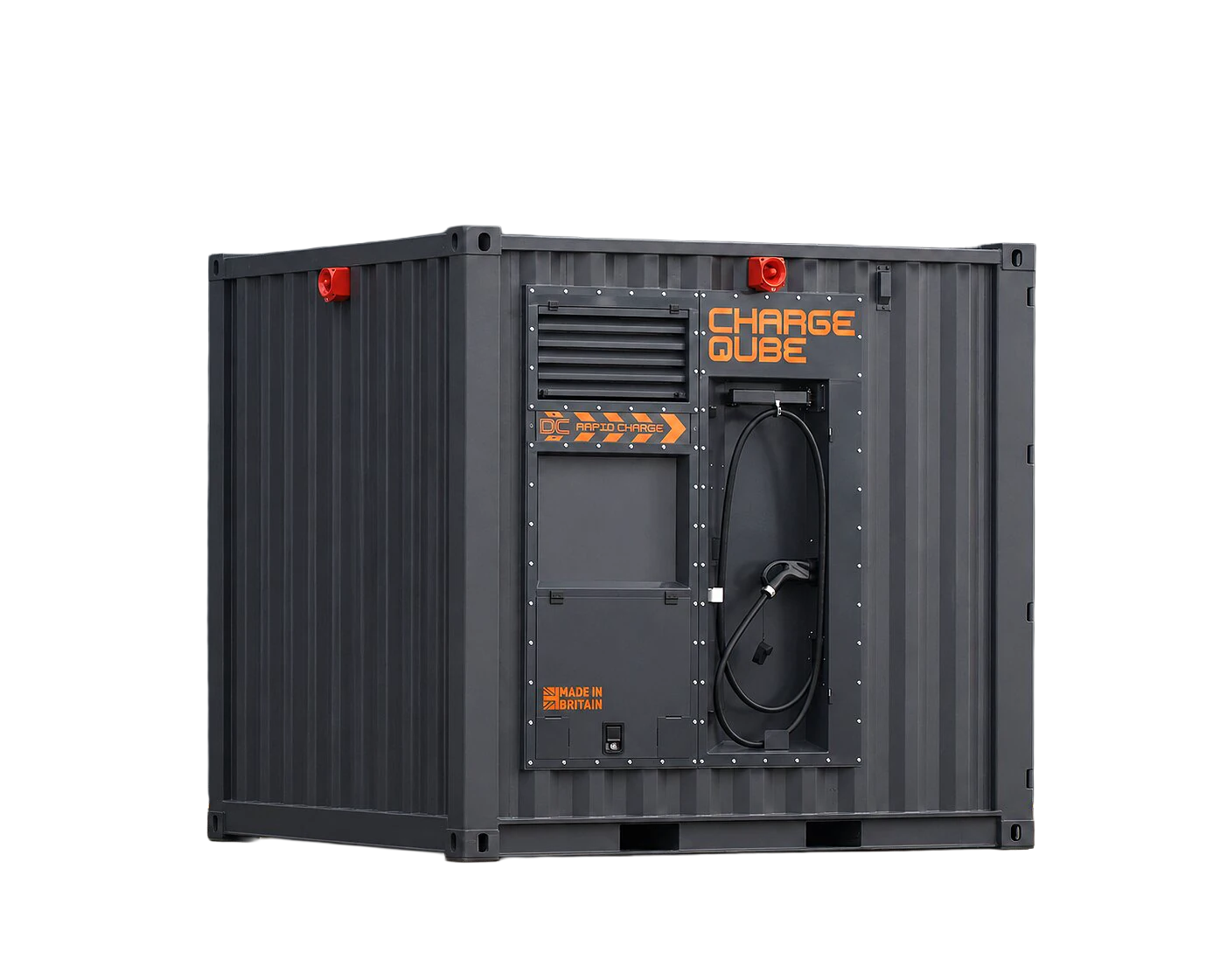

CQ450
10ft ISO container
Batteryenergy on board
160 kWh
450 kWh
Rapid chargingDC, CCS
250 kWtwo CCS, 150 kW/100 kW split with both in use
240 kWtwo CCS, one at 240 kW or two at 120 kW each
Time to charge45 kWh, a typical top up
24 to 32 min135 miles added
30 min135 miles added
Charged overnightwhile the fleet is parked
Rapid onlybuilt for fast turnaround
8 vehicles4 Pavilions, 9 kW each
Connectionsmains options offered
16A · 32A · 63A3-phase
32A · 63A · 120A3-phase
Footprint
226 × 134 × 110 cm~2,650 kg · pillar, no groundworks
10ft ISO containerNo DNO, no grid upgrades
Charge times are indicative: 45 kWh added, both bays in use, the vehicle accepting the unit's full rate derated 25% for taper, and 3 miles per kWh. Real times vary with the vehicle.
Also in the range
CQ1000 1,000 kWh · 240 kW CCS · 20ft ISO container
The largest unit in the range, specified to the site.
